Description
K-technik Diesel Heater System - Standard
For T5/T6/T6.1 VW Transporter / Multivan
The unique K-technik Max Alpine Air Heater is an impressive performer, combining versatility with low fuel consumption. Its compact design allows for quick installation, either inside or outside the vehicle. Once fitted, it heats the air in the interior or cargo space quickly, quietly, and maintains the set working temperature with precision. Users can select between recirculation and fresh-air modes for optimal comfort.

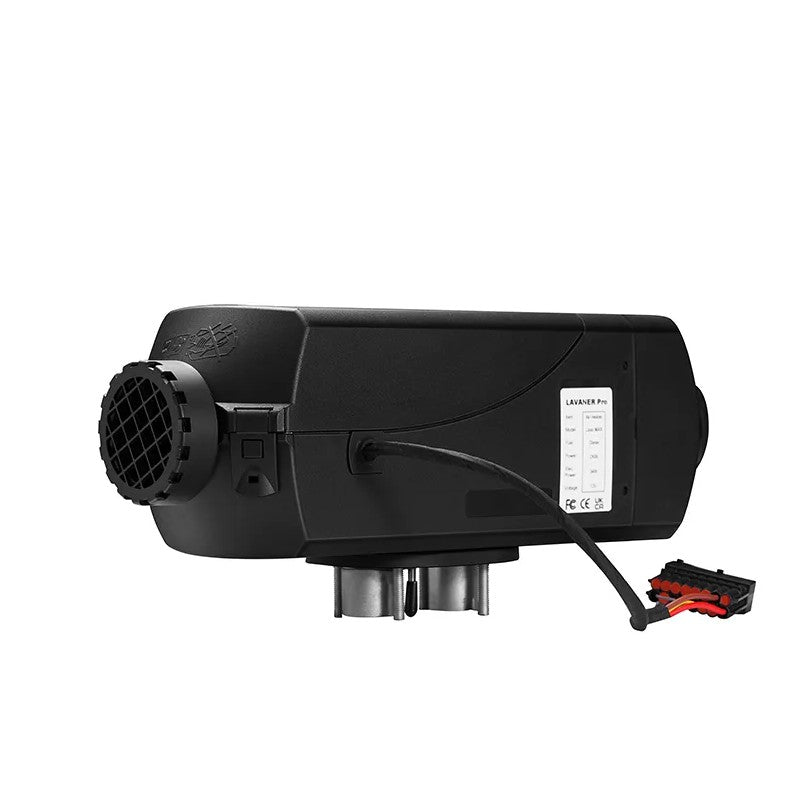

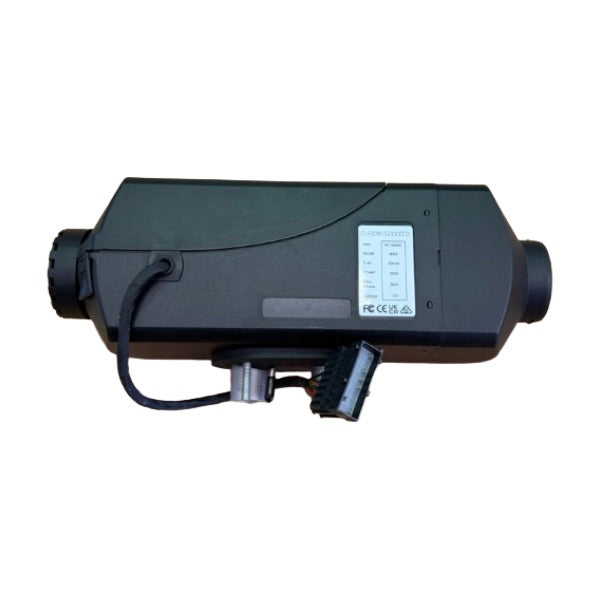

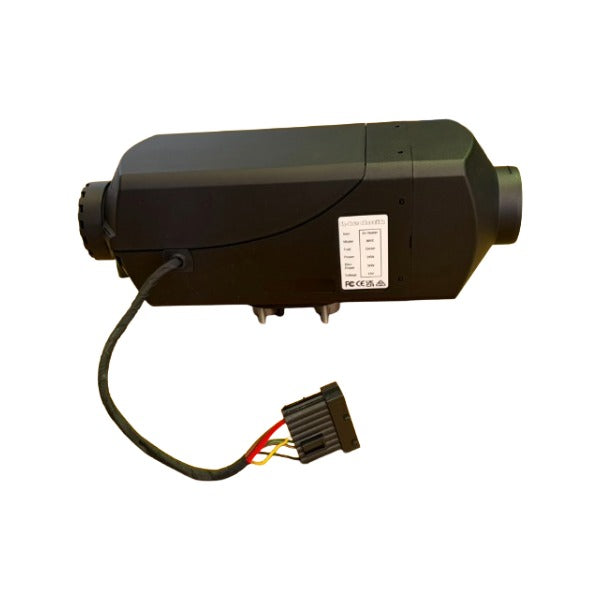

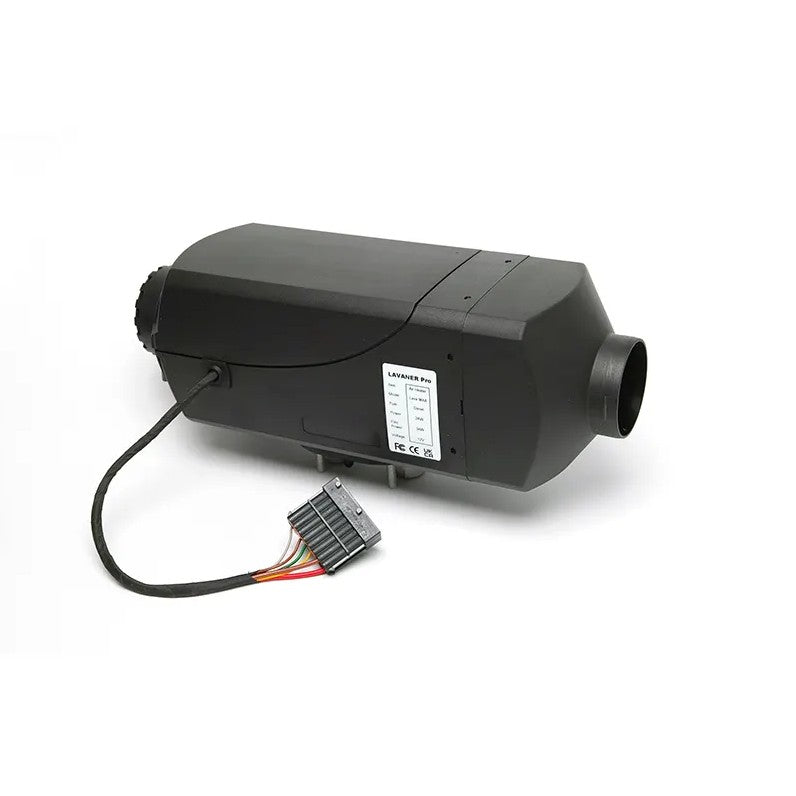

The 2KW Diesel Heater takes performance even further, automatically adjusting via its built-in barometer sensor to operate flawlessly below 10,000 feet. Built with industry-leading components such as Kyocera ceramic glow plugs and durable brushless motors, it delivers extended service life with minimal maintenance.

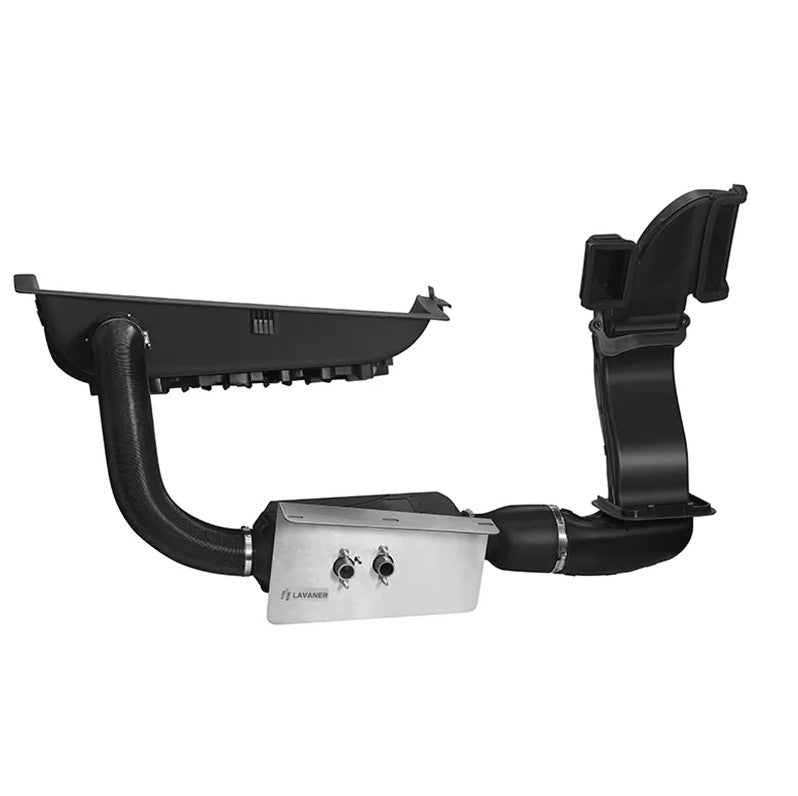

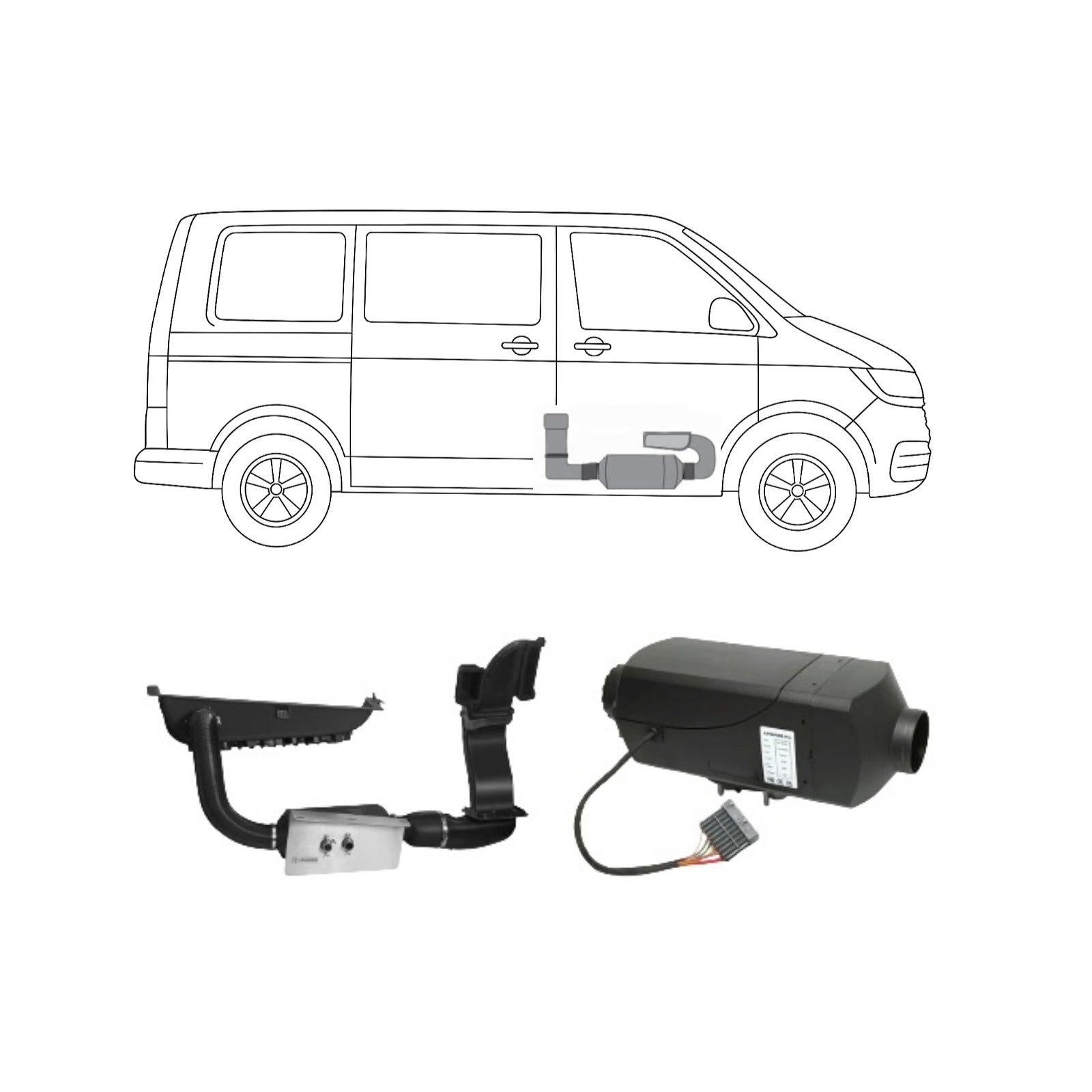

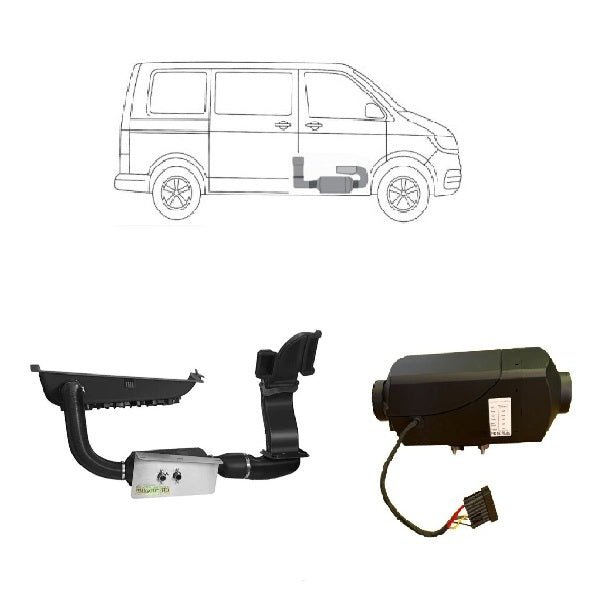

To complement the heater, the Standard Ducting Kit is engineered specifically for the K-technik Max Alpine 2KW Diesel Heater. It includes flexiable ducts, vents and mounting brackets, ensuring perfect integration with VW T5/T6/T6.1 models. This system maintains airtight airflow and maximum thermal efficiency, while reducing assembly complexity. With flat round vent for the front step and and a vent on the B-pillar the standard kit strikes the ideal balance between professional finish and user-friendly installation.
Features:
- 2KW Diesel Heater
- 10㎡ Coverage
- Brushless motor, long service life
- Remote/Manual Dual Control
- Designed for use for Campervans
- -40℃ Cold Start
- 5-Safety Protections
- High Thermal Efficiency
- meet CE & UKCA certifications
- Simplify installation
- All Ducting and Vents
- Designed for T5/T6/T6.1 VW Transporter / VW Multivan
- Round air vent on Front step
- Vents on B pillars
Specifications of Diesel Heater:
| Heating capacity (kw) | 2.0 |
| Heating medium | Air |
| Fuel consumption (l / h) | 0.28 |
| Nominal voltage (V) | 12 |
| Rated power consumption (W) | 34 |
| Fuels | Diesel |
| Operating temperature range (°C) | -41 to +55 |
| Dimensions L x W x H (mm) | 340 x 115 x 122 |
| Weight (kg) | Approx. 2.7 kg |
| Heater air flow rate (kg/h) | 105 |
Suits:
- VW Transporter T5/T6/T6.1
- VW Multivan T5/T6/T6.1

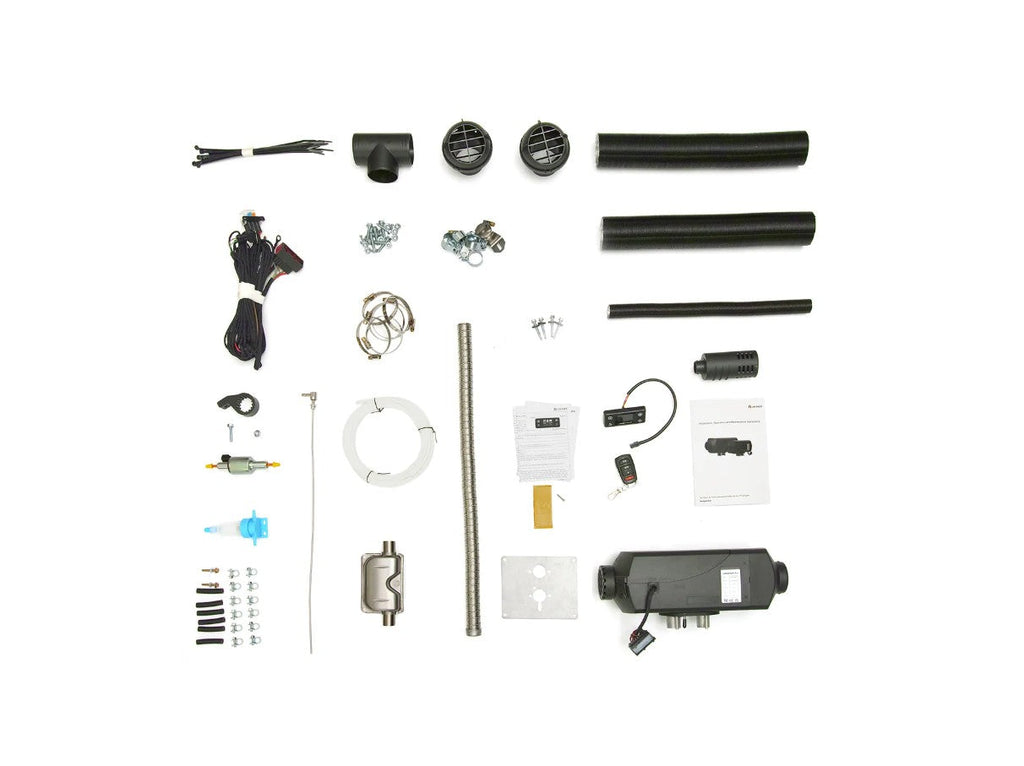

The kit includes：
- K-technik Max Alpine 2KW Diesel Heater x1
- Smart LCD Controller With Remote x1
- Exhaust pipe D25 x1
- Exhaust Silencer x1
- Air Intake Silencer x1
- Air Inlet Pipe D25 x1
- Fuel pump 22ml x1
- Solid Fuel Line x1
- Air Ducting D60 x2
- T-Shape Ducting D60 x1
- Air Outlet D60 Adjustable x2
- Mounting Plate x1
- Wiring Harness x1
- Cable Tie x10
- Diesel Heater Manual
- Fuel Dip Tube x1
- Fuel Kits Bag x1
- Mounting Bag x1 with various screws and clamps for Diesel Heater
- Gaskets and Screens x2
- Flat Vent x 1
- Air Duct-40cm x 1
- T5/6 Exhaust Rubber Reducer x 1
- T5/6 Lower Air Channel Guide x 1
- T5/6 Upper Air Channel Guide x 1
- T5/6 Frame x 1
- T5/6 Air Guide x 1
- T5/6 Flat Air Vent x 1
- T5/6 Rear B-Pillar Vent x 1
- M5*20 Self-Tapping Screw x 2
- M4*11 Self-Tapping Screw x 3
- 50-70 Clamp x 3
- 84-108 Clamp x 1
- T5/6 Heater Air Duct kit Bracket x 1
- Rivet Nut x 2
- M6*30 Bolt x 2
- Pry Tool x 1
- Plastic ties x 10
- Rivet Tool x 1
